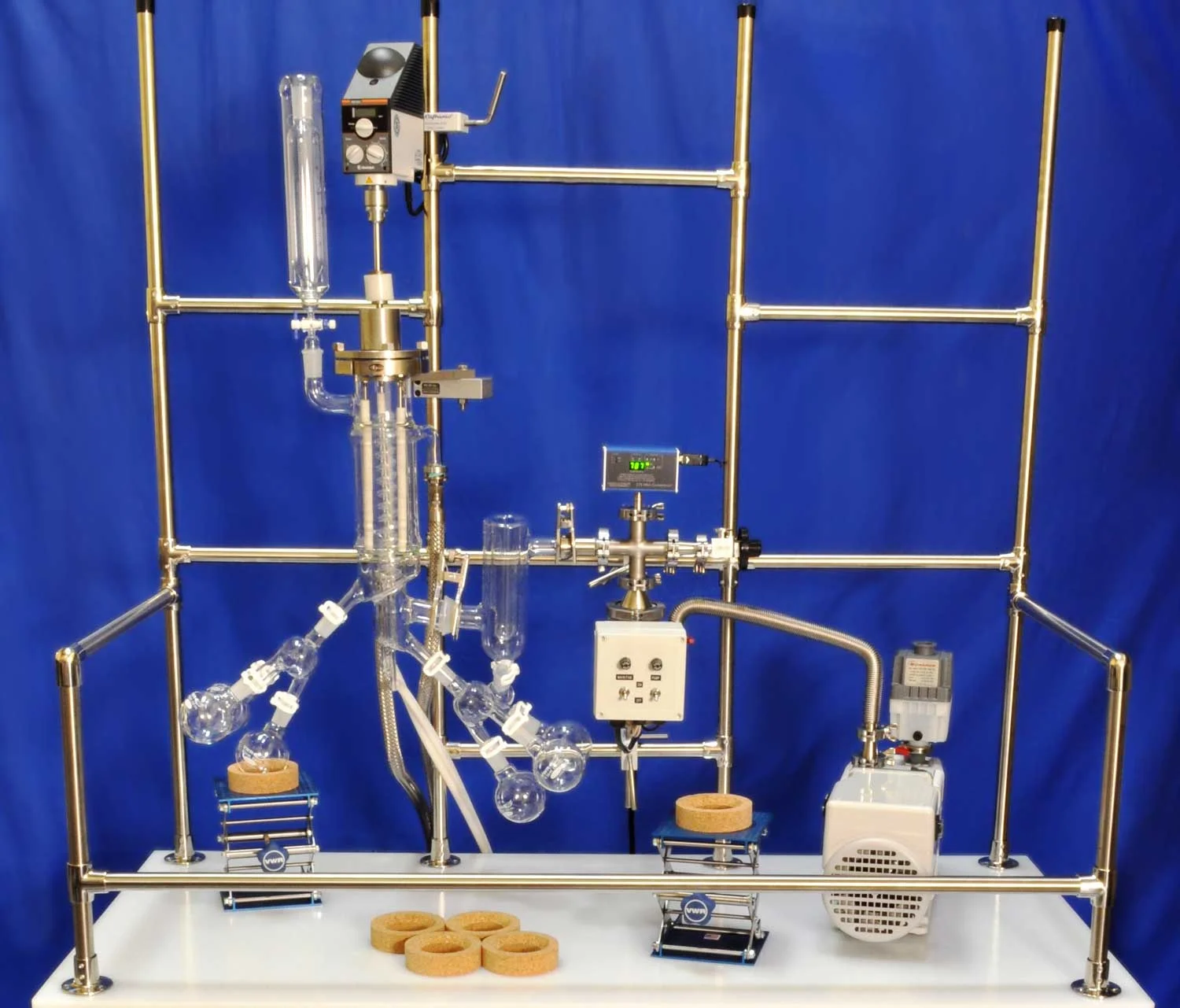

Laboratory Short Path Distillation Plant

IPS’s Laboratory Short Path Distillation System is a small Molecular Distillation System for R&D facilities. It is invaluable in developing formulations, generating products and proving process separations involving Molecular Distillation Technology. Since small quantities of the materials are required, this versatile tool provides the means for isolating small quantities of your formulation for evaluation.

The Single Stage Distillation Plant runs at 0.1 to 2.0 liters per hour, with shorter run times possible. This is a complete system including the feed vessel, Short Path Evaporator and internal condenser, hot oil heater, condenser cooling system, cold trap, and vacuum system. The Short Path Evaporator and internal condenser and product piping is constructed of high quality Duran glass; the wiper basket and rotary vacuum pump are constructed of stainless steel. Gaskets are made of Viton®. Optional materials can be specified as required.



Contact us for an IPS Lab System Proposal Request
